Standstill, Drive, Emergency stop, Phase, Temperature monitoring



The SAFEONE standalone products offer state-of-the-art safety features at an unbeatable price. The compact housing with its industry-standard design even fits in the smallest switchboard. Choose from screw clamp or spring clip configurations for quick and easy wiring.



Contact us





Module gruppiert

high-end, low-cost and hassle-free.

Standalone modules

The SAFEONE standalone products offer state-of-the-art safety features at an unbeatable price.

The compact housing with its industry-standard design even fits in the smallest switchboard.

Choose from screw clamp or spring clip configurations for quick and easy wiring.

SAFEONE Gruppe



The Allrounder

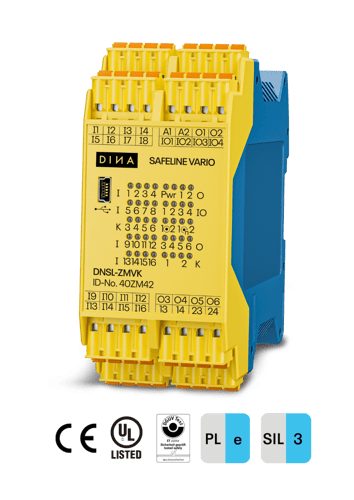

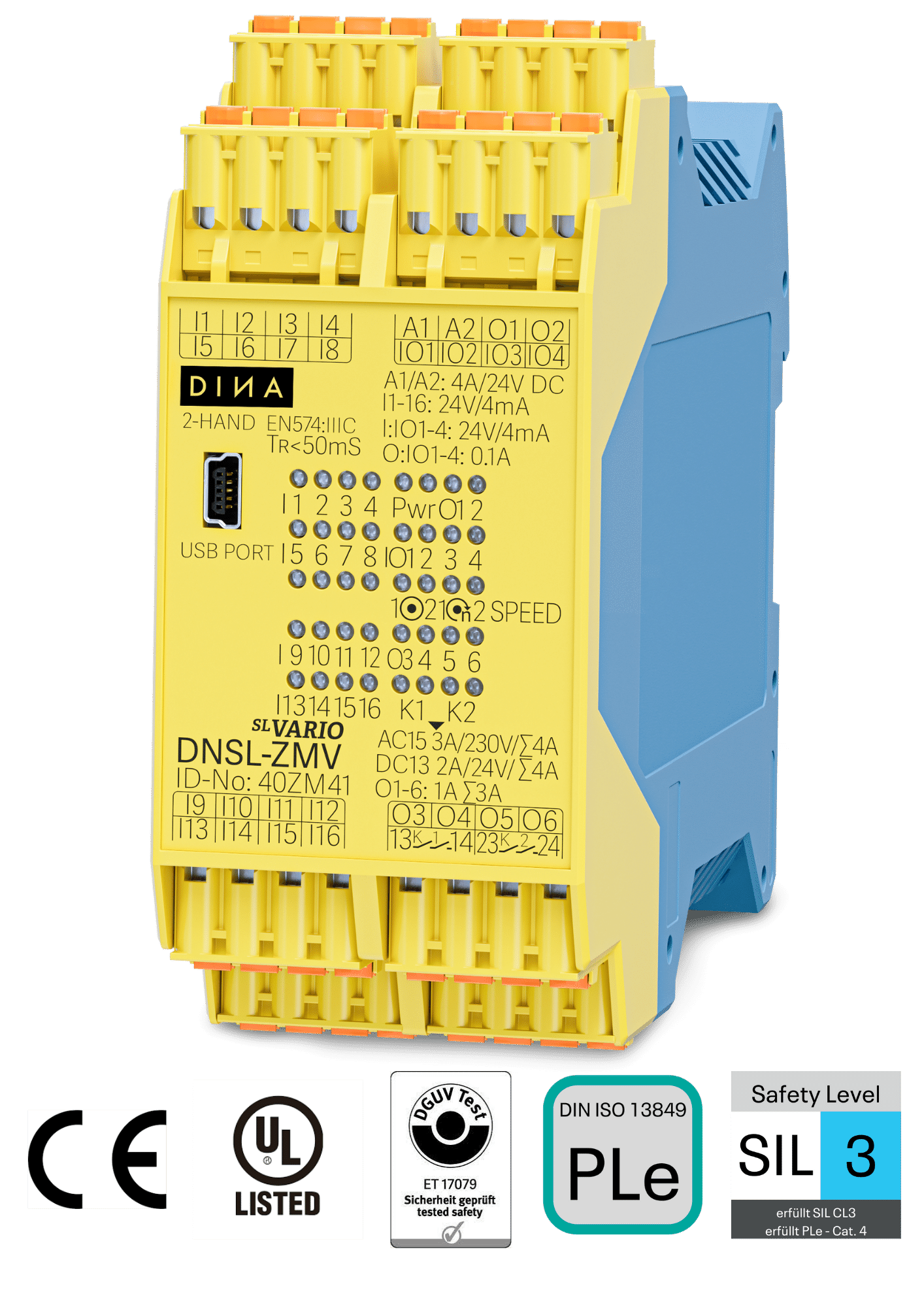

SAFELINE VARIO

SAFELINE VARIO is the compact safety control system from DINA that monitors everything with maximum safety up to Performance Level e or SIL CL 3. It enables the monitoring of safety functions such as emergency stop, light barriers, door contact switches and much more. Its modular design allows it to be easily adapted to the user's requirements.

With its high processing quality and easy handling, the SAFELINE VARIO is the ideal solution for all complex applications in machine safety.

Product overview

VARIO

Standstill Monitor

DN3PS2

The sensor-less standstill and speed monitoring systems work without a measurement system, a unique feature in both this compact size and type of module. They safely monitor 1- to 3-phase motors to up to 690V AC at PL e.

The standstill monitoring device DN3PS2 measures the electromagnetic force of a stopping engine. The volt-free outputs toggle when falling below the pre-configured switching threshold.

Product overview

DN3PS2 Zertifikate

Speed Monitor

SAFEONE DN3PD1/DN3PD2

The SAFEONE DN3PD1/DN3PD2 speed monitoring modules monitor a speed range (SSR), a reduced speed (SLS) or a maximum speed (SSM).

With this variant, the frequency specified by the drive is reliably monitored.

On the SAFEONE DN3PD1, configuration and diagnostics are carried out with just one button and the two-color LED display directly on the front panel. Commissioning and troubleshooting can be carried out quickly and without additional tools.

In contrast, our latest development SAFEONE DN3PD2 can be easily configured via the innovative GO:Beyond software and USB interface.

Product overview

DN3PD mit Schatten + Zertifikat-min

Phase Monitor

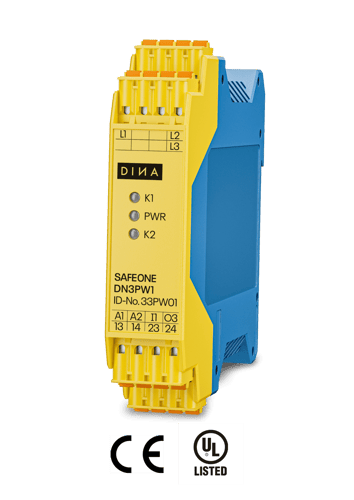

DN3PW1

The compact phase monitor reacts in light speed in case of phase failure (less than 10 ms).

It comes with semiconductor outputs as well as contact outputs and is suitable for phase voltages up to 400V AC.

Product overview

DN3PW 1 Schatten + Zertifikat

Rotational Direction Monitor

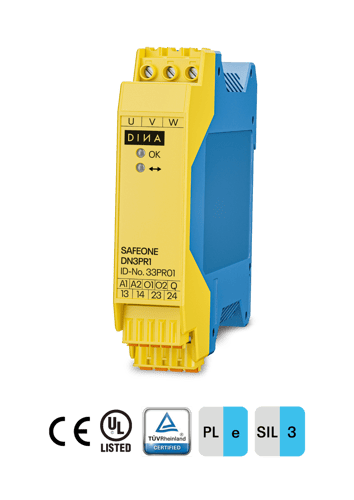

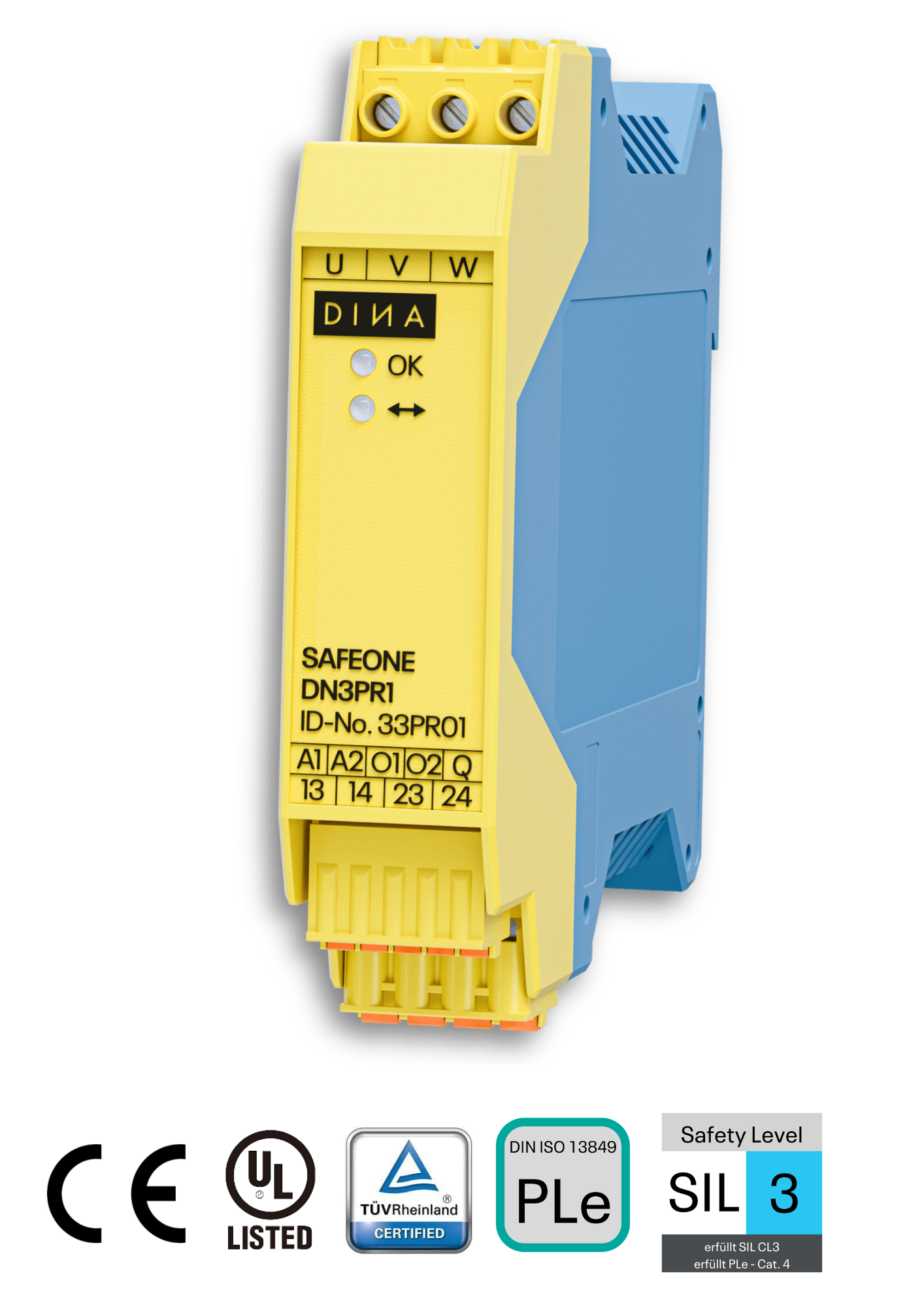

SAFEONE DN3PR1

Our rotational direction monitor DN3PR1 is an innovative safety module that can be used in many applications to ensure machine safety. This module monitors the rotational direction of drives and sends a safety stop signal in case of deviations from the intended direction.

It is easy to install and configure, providing reliable monitoring of the rotational direction.

Product overview

DN3PR1 Zert

Emergency Stop Relay

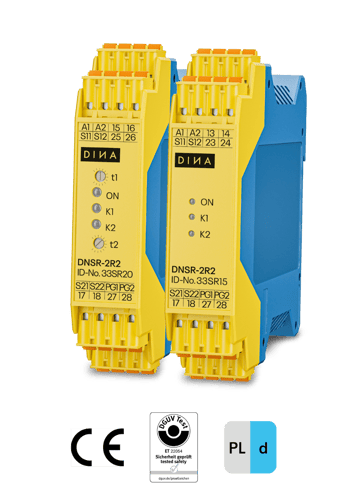

DNSR-2R2

The emergency stop relay comes preconfigured for your application needs and is available with un-delayed, off-delayed or on-delayed contact outputs.

Some versions even allow to set the time delay directly on the device. For even more flexibility.

Product overview

DNSR mit Zertizierung

temperature monitoring.

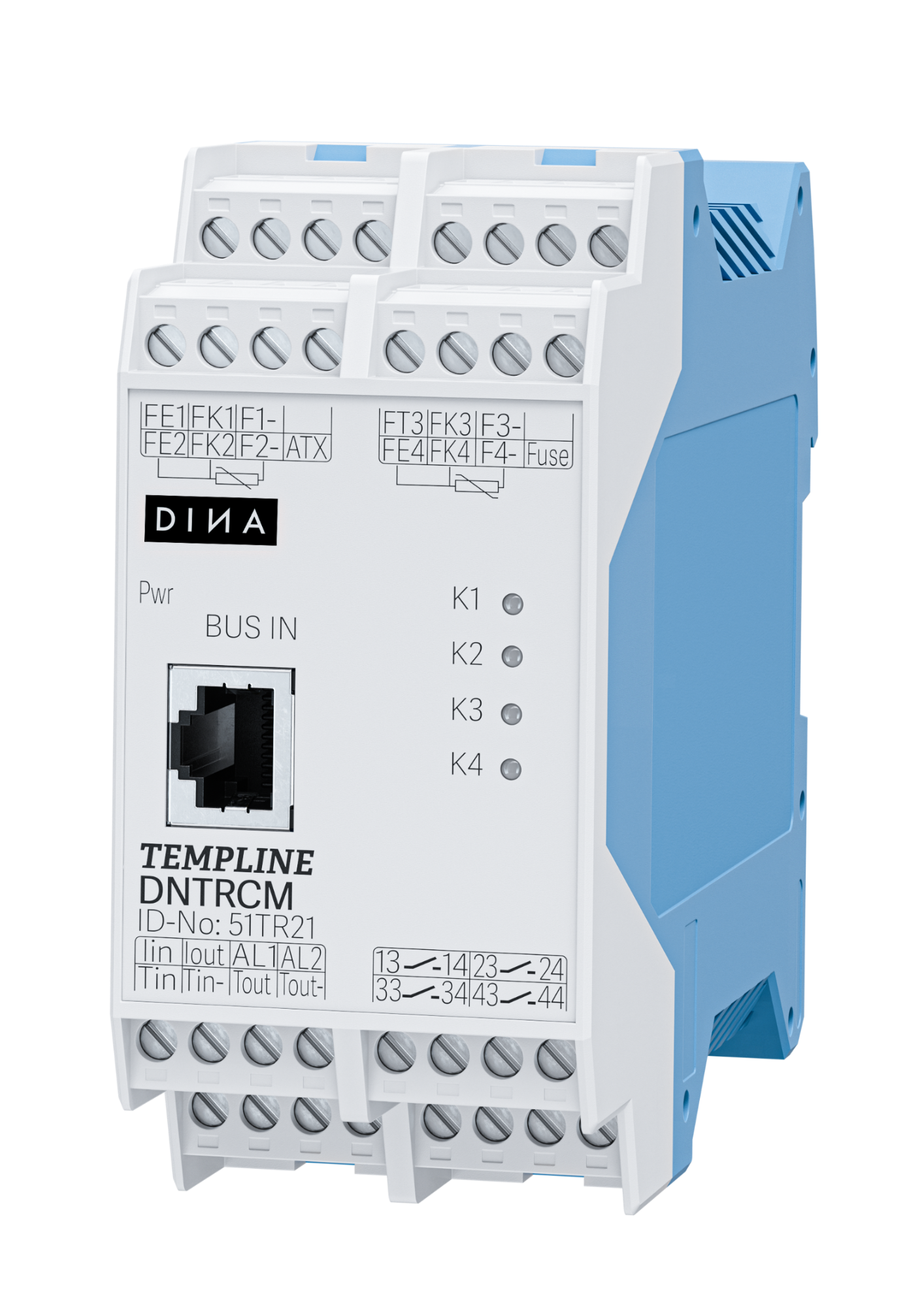

TEMPLINE

The temperature controller system monitors temperature with PT100 sensors or alternatively with thermo elements. Additionally, it functions as an anti-freeze protection.

The system is cascadable and the included configuration software enables easy computer-based programming and online diagnostics.

Up to 4 controlling circuits can be created with a single controller, which comes with 4 contact outputs and an analogue output (4-20 mA) to drive a power controller.

The control panel displays target and actual values as well as the status of the system and doubles as a configuration tool for all controller modules.

Templine komprimiert
