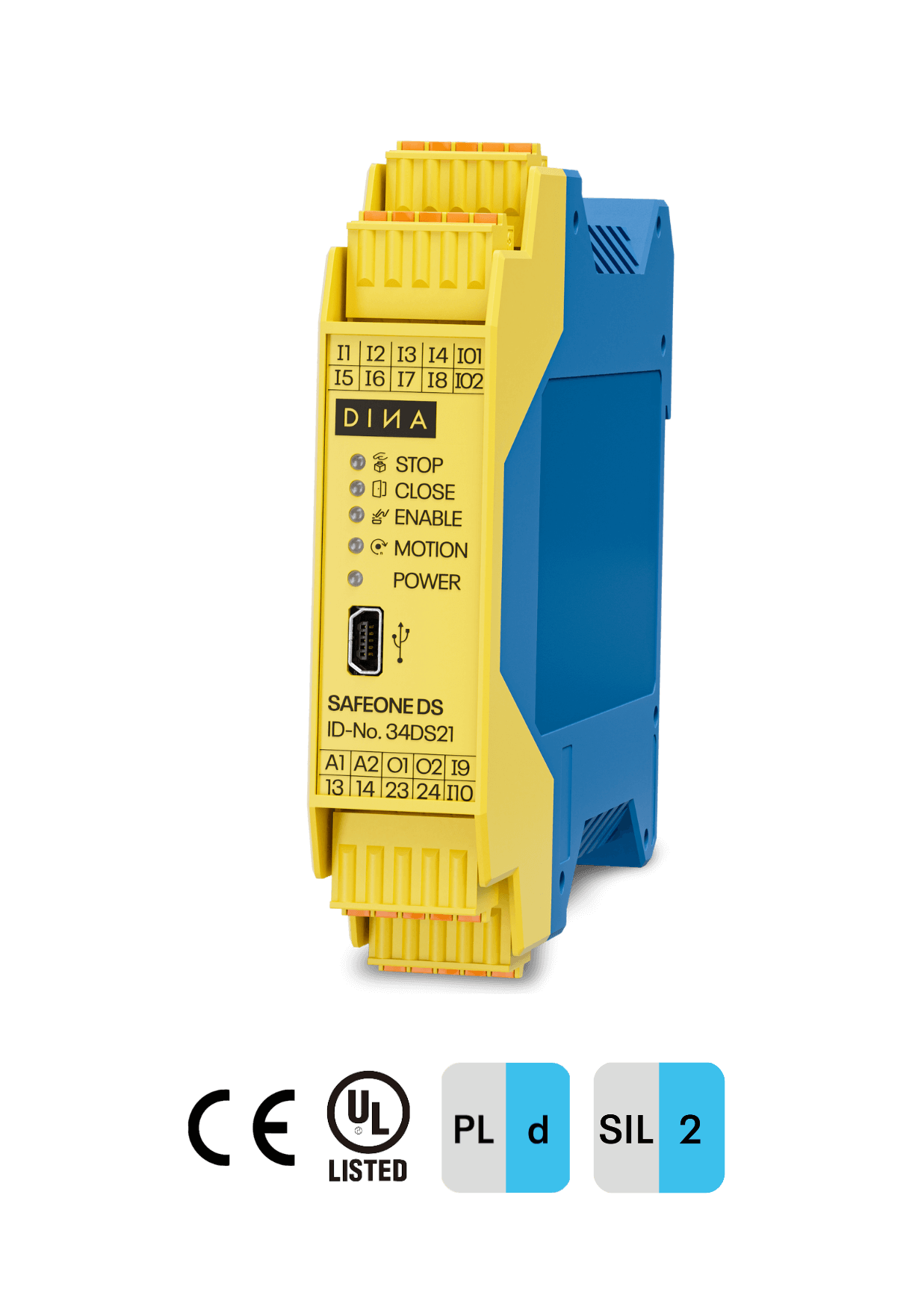

Compact Safety Control
SAFEONE DS
Our latest product innovation simplifies machine safety on a level never seen before. With a width of only 22.5 mm, the SAFEONE DS is the most compact safety device that covers speed monitoring as well as three other safety circuits. The module meets the requirements of ISO 139849-1 up to Performance Level d.
Machinery Safety has never been this easy.
You are looking for a simple solution for speed monitoring that also provides you with safety functions (e.g. emergency stop or door monitoring), but do not want to give up on compact design nor simple validation?
For people like you, we have developed the SAFEONE DS safety module:
The first solution that offers safe speed monitoring, but also emergency stop and door monitoring features at the same time.
The SAFEONE DS guarantees maximum Safety – depending on the application, up to PL d according to
EN ISO 13849-1.
Safety Features
Power Supply
Operating voltage UB | 24 V DC (-15/+10%) |
Current consumption at 24V | 50 mA |
Power consumption at A1/A2 | 1,2 W |
Digital Inputs
Inputs | 10 safety-related inputs I1 - I10 |
Power consumption | typ. 4 mA (at UB) |
Input voltage range "0" signal | 0...5 V DC |
Input voltage range "1" signal | 15 V DC...30 V DC |
Measuring Inputs: Encoder Inputs
Encoder Input | 1 safety-related encoder input |
Signal type | Sin/Cos, TTL |
Cut-off frequency | 50Hz until 300kHz |
Semiconductor Outputs
Outputs | O1, O2 | IO1, IO2 |
Output type | ||
Voltage | 24 V | 24 V |
Max. Switching Current | 1 A | 0,5 A |
Max. Total Current | 2 A | 1 A |
Min. Switching Current | 1 mA | 1 mA |
Contact Outputs
Outputs | 13/14, 23/24 |
Contact Material | Ag alloy |
Output guidance, Performance Level |
PLd |
Min. Switching Current | 10 mA |
Breaking capacity according to IEC 60947-5-1 | DC13: 1A/30V DC |
Mechanical service lifetime | 5 x 10^7 switching cycles |
Contact fuse protection | 3 A gL/gG |
Response/relapse time typical | 10 ms / 10 ms |
General Data
Protection class (housing and terminals) | IP20 |
Protection class (installation location) | min. IP54 |
Air and creepage distances between the current circuits | according to DIN EN 50178 |
Rated insulation voltage | 50V AC |
Rated surge voltage / insulation | 0,8 kV |
Pollution level | 2 |
Overvoltage category | III |
Casing material | Polyamide PA not reinforced |
Terminal data
Terminals | Spring-loaded terminals, pluggable |
Conductor cross-section | 0,25 – 1,5mm |
Conductor cross-section AWG | AWG 24...16 |
Conductor type | Flexible with ferrule without plastic sleeve sleeve |
Stripping length | 9 mm |
Environmental Data
Operating temperature | -10 °C until +55 °C |
Storage temperature | -40 °C until +85 °C |
Height of the application area | < 2000 m above sea level |
Shock resistance | 11g |
Vibration resistance | 2g |
Measurements
B x H x T | 22,5 x 114 x 111 mm (0.886 x 4.488 x 4.370 in) |
Size of the standard rail | 35,0 mm (1.378 in) |

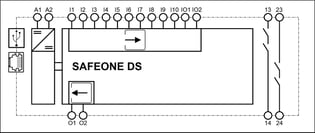

Block Diagram
Application
Description | |
Emergency Stop Switch | |
Protective Door | |
Enabling switch | |
S1 | Acknowledgement button for speed monitoring and emergency stop |
S2 | Unlocking the protective bonnet |
S3 | Selection special operating mode |
E1 | Guard locking Protective bonnet |
Safety-relevant parameters according to DIN EN ISO 13849-1:2016-06
MTTFd [a] | 100 |
Category | 3 |
Performance Level | d |
PFHd | 1,01E-07 |
Requirement rate | < 12 Monate |
Service life | 20 Jahre |

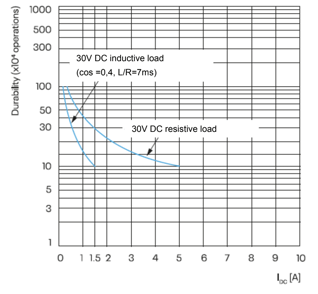

Contact Service Life
Electrical contact service life of the output contacts according to DIN EN 60947-5-1/ Annex C.3
SAFEONE DS: EC-Declaration of Conformity
SAFEONE DS: EC-Type Test Certificate
GO:BEYOND Configuration Software
Applikationen
- Machines that do not have the complexity requiring a freely parameterisable system, such as SAFELINE VARIO
- Machines that currently use more than one safety relay
- woodworking machines, small grinding machines, centrifuges, mixers & agitators, saws, mobile lifting platforms, shredders etc.
- Machines with only few safety functions that require speed monitoring
Branchen
- Sägen für Holz und Kunststoff
- Rolltreppen
- Lüfter
- Zentrifuge
- Schaltschrankbau
- Fahrgeschäfte
- Pneumatik-Systeme mit wenigen elektrischen Achsen
- u.v.a.m.
Your advantages summarised
SAFEONE DS
More Space in the cabinet
The first module on the market that combines safety circuits and speed monitoring in a really compact way (22.5 mm).
Cost-efficient
Instead of buying a new multifunction safety control with too many functions, only buy the functions you really need. This saves real money.
Multifunctional Parameter Setting Software
No complex application, no further parameterisation hardware modules necessary and yet maximum flexibility.
Easy as pie
Less technology, simple design, integration, validation and documentation, just plug in and enjoy.
