Standstill Monitor
SAFEONE DN3PS2



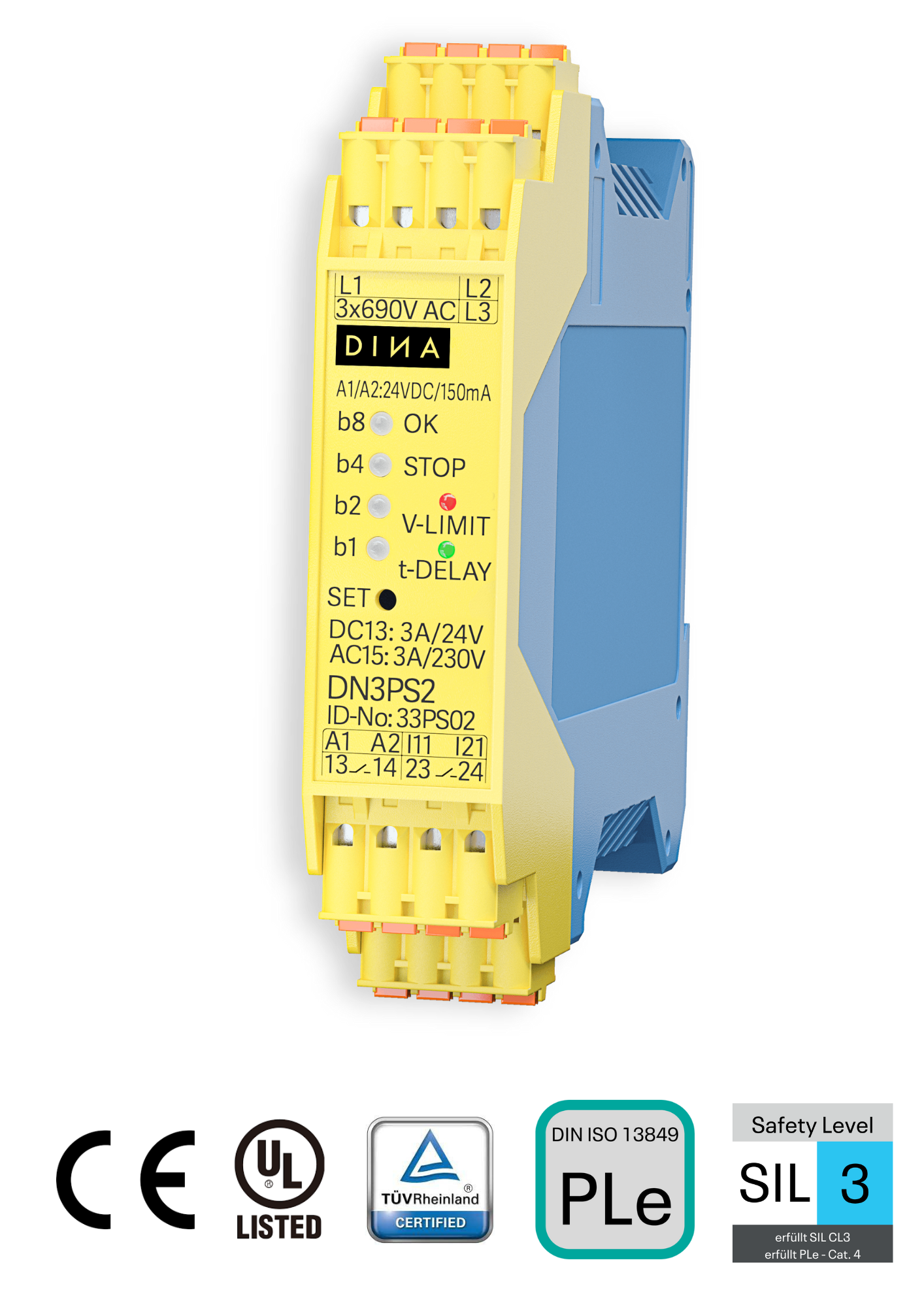

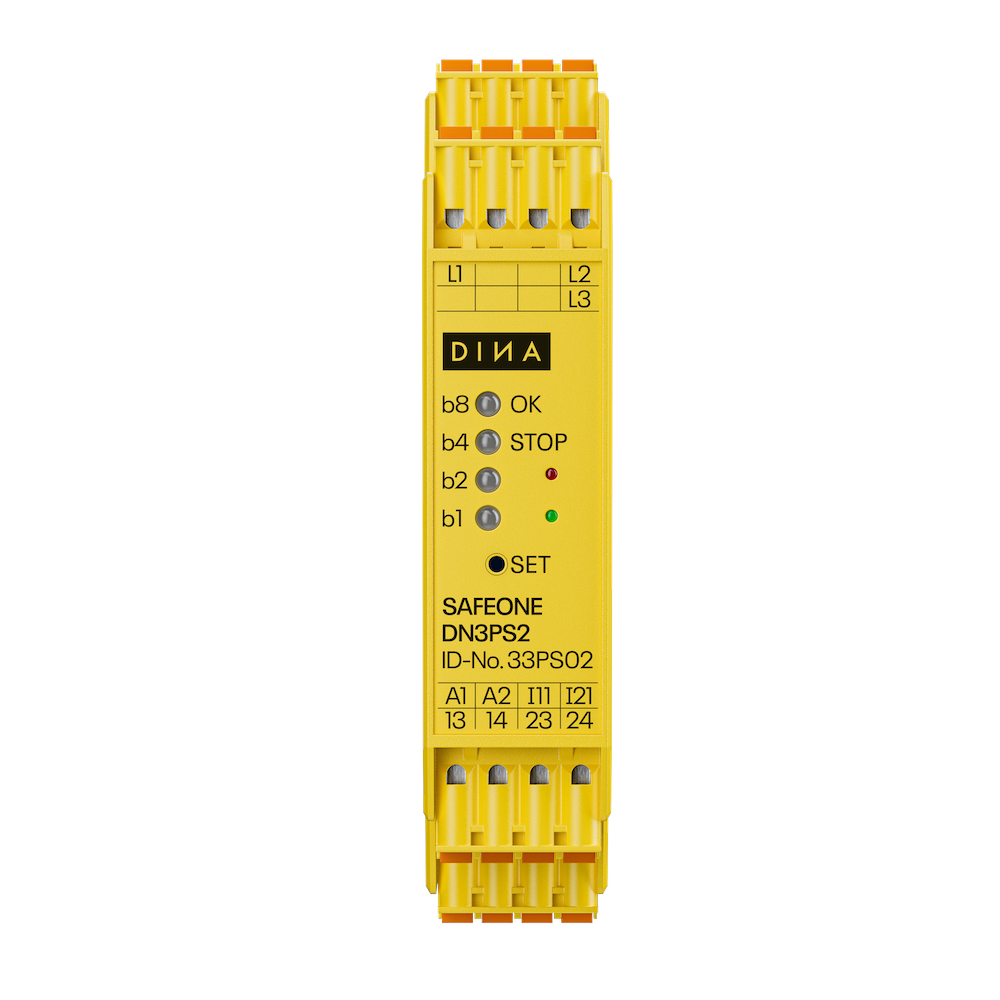

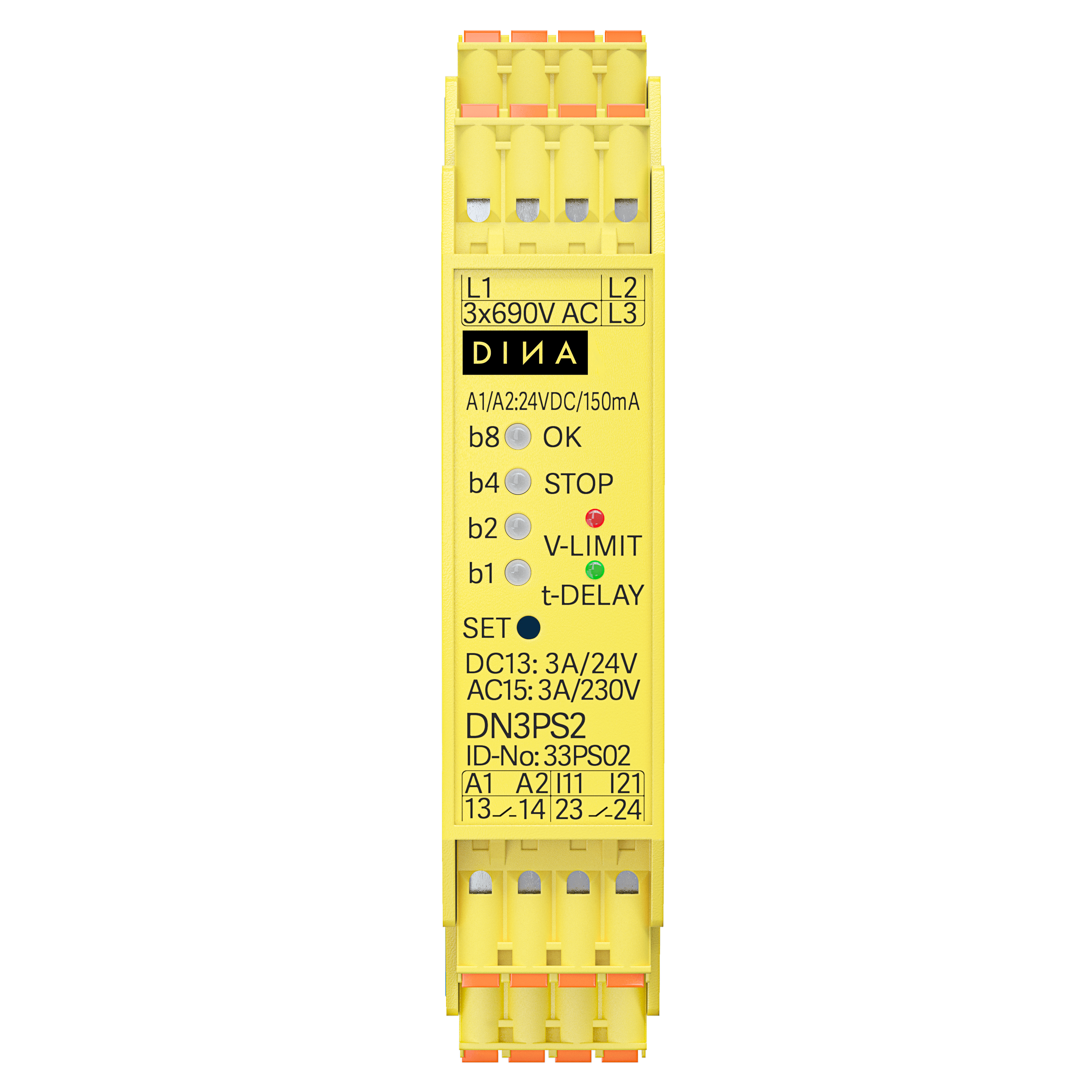

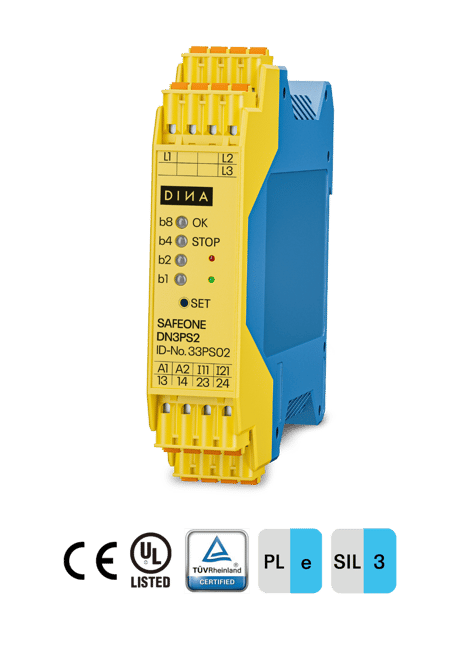

The SAFEONE DN3PS2 is a safety switchgear for sensorless standstill monitoring of three-phase and single-phase motors. Standstill detection is performed in the device by evaluating the EMF. The module complies with certified Performance Level e and SIL 3.

Sensorless
Plug & Play
TÜV-certified MVO compliance



Request Product

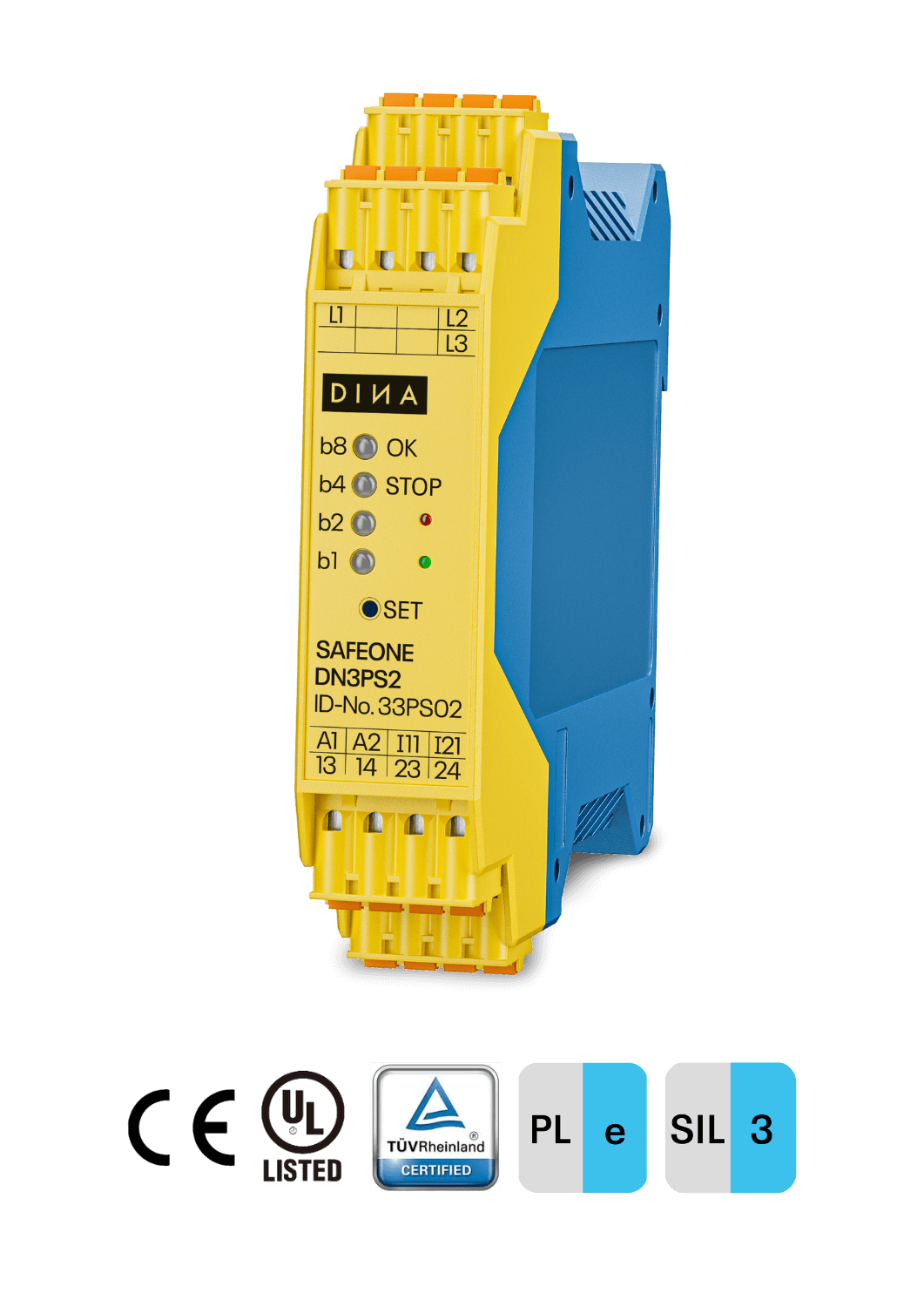

SAFEONE-DN3PS2-09-24



Your benefits at a glance.
Unabhängig _ Freiheit

Independent

Can be used regardless of provider
and system.
Kompakte Module _ Kompakte Bauweise

Space-saving

With a width of 22.5 mm, the standstill
monitor fits into any switch cabinet.
Zuverlässig _ Sicherheit

Reliable

Less prone to failure by eliminating
the encoder.
Parametrierbar

Parameterizable

Parameterization is performed using the SET button on the module.
Plug&Play

Plug & Play

Quick and easy commissioning
without sensor wiring.
Kostenersparnis _ Kosteneffizienz

Cost-efficient

Lower costs, as no sensors need
to be installed.



Relais_Diagnose Ausgang-1 SAFEONE_DN3PS2_Merkmale_ENsensorlos-1 Betriebsspannung-2 Breite 22,5mm-1 Schalteistung-1Symbol_1- und 3-phasige_Motoren_EN Ple Merkmal EN SIL 3 Merkmal EN



General Data

Width 22,5 mm
Switching Capacity up to 3 A
In- and Outputs 2 Relay Outputs (1 safety Contact) + 2 Diagnostic Outputs
Connection Terminals Spring-loaded terminals, screw terminals
Certifications PLe (EN ISO 13849-1), SIL3 (IEC 61508), SIL CL3 (IEC 62061), UL-certified
Hardware-Parameterisation Yes
Software-Parameterisation No
Motion Monitoring without external sensor
Hardware-Diagnosis/LED Yes
Safe Torquet OFF (STO) Yes
Muting (bypass) Yes



Technical Data

Protection IP20
Installation Site any
Encasing Material/Type Polyamide PA not reinforced
Rated insulation voltage 250V AC
Surge voltage strength 4kV
Surge voltage category III
Measurements B x H x T/ 22,5 x 114 x 111mm
Connection terminals/ Material Plug-in spring-cage terminal blocks/ polyamide PA
Conductor cross-section (flexible only) 0.25 - 2.5mm^2 with adhesive end sleeve
Connecting wire 60/75°C copper
Conductor cross-section AWG 24...12
Wire stripping length 8mm



Inputs

Operating Voltage 24V DC -15%/+10% with reverse polarity protection
Current consumption at 24V DC ≤ 80mA
Current consumption L1, L2, L3 0,35mA at 690V AC/ 5KHz
Input voltage L1, L2, L3 90 to 690V AC
Input voltage A1/ A2 Type 2,8W
Status Indication 4 x LED 2-colored
Protective circuit Overvoltage and reverse polarity protection for operating voltage



Outputs

Contact design 2 Release contacts
Minimum switching current ≤ 10mA
Switching capacity in accordance with IEC 60947-5-1 DC13: 3A/24V
AC15: 3A/230V (not at ID-No. 33PS08)
Mechanical lifetime > 20 x 10^6 Switching Cycles
Contact Material AgNi
Contact fuse 5 A gL/gG
Response time adjustable 0.5 s – 40s
Outputs O1, O2 ≤ 100mA short-circuit and overload protected, only with ID-No.: 33PS08



Environmental Data

Temperature -20 to +55°C according to DIN IEC 60068-2-3
Storage Temperature -40 to +85°C according to DIN IEC 60068-2-3
Min. height
< 2000m above Sea Level NN
Vibration resistance in all 3 levels
 Sinus 10-55Hz, 0.35mm, 10 cycles, 1 octave/min
Clearance and creepage distances
 DIN EN 50178, safe isolation
Minimum installation protection class Installation in a control cabinet is mandatory



Block diagram (terminal assignment 33PS02, 33PS03, 33PS05)

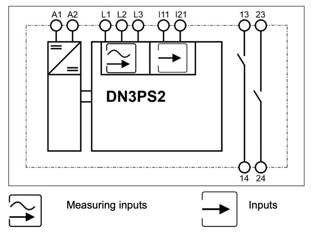

Bildschirmfoto 2024-11-22 um 08.19.58

Two different function types are possible with the variants 33PS02, 33PS03, 33PS05. The function type is selected via inputs I11 and I21.

Function 1 Function 2
I11 and I21 not connected I11 and I21 connected
Standstill monitoring is constantly active. Standstill monitoring is not active.
Close the enabling contacts when the drive is at a standstill. Enable contacts are closed (with 33PS05 only the enable contact 13/14 remains closed.
The enable contact 23/24 switches off on movement).
- The error detection "wire breakage and "single-channel" is inactive. (not with 33PS05)



Sample Application for Function 2

Bildschirmfoto 2022-10-06 um 17.35.22



Safety Features

STO (Safe Torque Off)  yes



Safety parameters according to DIN EN ISO 13849-1

Stop Category according to IEC 60204 0
Category according to DIN EN ISO 13849 4
Performance Level e
MTTFd [a] 77
PFHd 4E-08



Contact service life


Bildschirmfoto 2022-10-06 um 17.20.48

Manual

EC-type Certification

EC Declaration of Conformity

EU-type Certification

EU-Declaration of Conformity

EPLAN-Makros



Sistema-Library

 DINA STEP Modules





Motors

  • Three-phase motor with frequency converter
  • Single-phase AC motors
  • Motors with star-delta connection
  • Servo Motors

Typical applications

  • Wood processing
  • Centrifuges
  • Metalworking machines
  • Conveyor systems and conveyor belts



Request SAFEONE DN3PS2

Whether retrofitting or planning state-of-the-art machines up to performance level e.
Safe standstill monitoring of motors and machines does not have to be complicated.



Further SAFEONE Standalone Modules
